Description

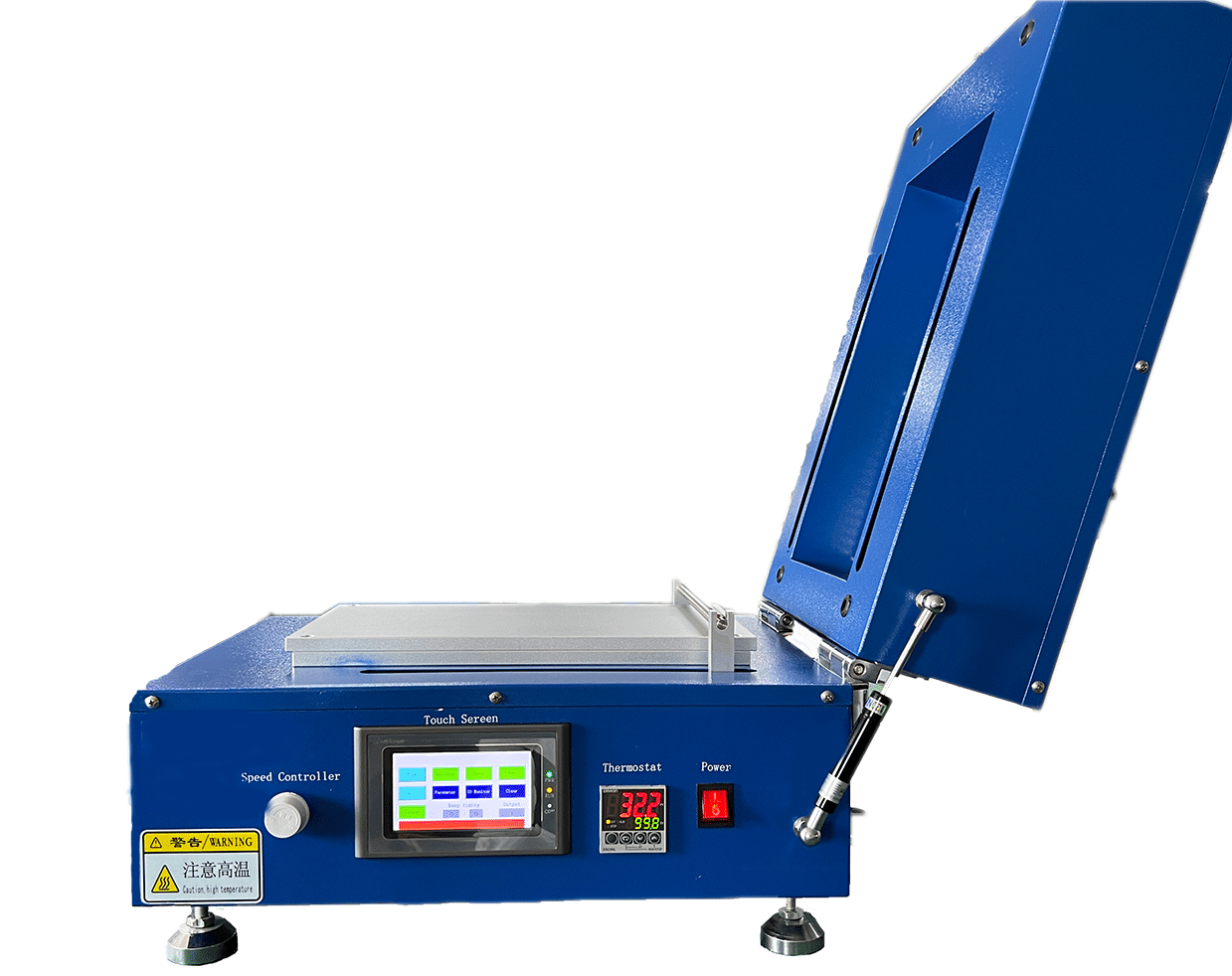

Electrode Casting Coater with Heating Bed LT-TMH250 is a Compact Tape Casting Coater with a vacuum chuck hotplate up to 130ºC. It provides precise temperature control after the coating, leading to enhanced thin, flat ceramic components. It is widely used in the research of various high-temperature coating films, such as ceramic thin films, crystal thin films, battery material films, and special nano-films, which can adapt to film formation under elevated temperature conditions.
Features
- Large area uniform heating to ensure high precision and uniform temperature in the cavity.
- Flat coating, motor-driven scraper coating, stable and adjustable coating speed.
- The coating film speed is adjustable. The vacuum aluminum pan can quickly place or remove copper foil, aluminum foil, etc., built-in vacuum pump or connected to an external vacuum source, and the substrate is adsorbed without deformation.
- Standard film dispenser, high coating precision, coating, Adjustable cloth thickness.
- Can be used in the glove box, easy to operate and small in size, which can save space.
- PLC Touch screen control for easy setting.
Specifications
| Product Name | Compact Film Coating Machine with Vacuum Chuck and Drying Heater |
| Coating Stroke | Max 250mm |
| Coating Speed | 0~100mm/s |
| Vacuum Plate | Equipped with vacuum aluminum plate |
| Dimension of the Vacuum Plate | 365mm*200mm*30mm (L*W*H) |
| Coating Blade Range | 0.01 – 3.5 mm |
| Heating & Drying System | Room temperature to 250 °C, digital temperature controller, accuracy ±1 °C |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 2KW |
| Net Weight | 65KG |
| Product Dimension | 500mm*310mm*330mm (L*W*H) |
